61500814221 THT Cat 3 Modular Jack Shielded 8P8C Without EMI Finger

Name: 61500814221 THT Cat 3 Modular Jack Shielded 8P8C Without EMI Finger
Brand: LINK-PP
Price: 0.5 USD

China 61500814221 THT Cat 3 Modular Jack Shielded 8P8C Without EMI Finger wholesale

Brand Name : LINK-PP

Model Number : 61500814221

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000/25K

Price : $0.5-$1.22

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Delivery Time : in Stock Ship Today

Packaging Details : 50pcs/tray,1200pcs/carton

Product Category : Cat 3 Modular Jacks

Part Number : 615008138221

USOC Codes : RJ45

Termination Style : Through Hole

Number of Pins : 8P8C

Gender : Female

Shielding : Bronze material with nickel plating

Operating Temperature : -40 °C to +85 °C

Contact Now

High-quality 615008138221 THT Cat 3 modular jack with shielded 8P8C, TAB down, rated 1.5A, 120V AC. Durable, reliable, perfect for CAT 3 network systems.

61500814221 RJ45 Modular Jack Overview

The 615008138221 THT Cat 3 Modular Jack is designed for reliable CAT 3 network connections. With its shielded 8P8C configuration, horizontal 1x1 port layout, and TAB-down design, this modular jack provides stable signal integrity and a long service life. Ideal for telecommunications and low-speed data applications, it ensures consistent performance under various operating conditions.

Through this product page, you will learn the key technical specifications, performance benefits, and why this modular jack is a top choice for CAT 3 network systems.

Key Features

Number of Pins: 8P8C
Port Layout: 1x1 horizontal
Shielding: Bronze material with nickel plating
Contact: Copper alloy with gold plating, stamped type
TAB Direction: Down
Durability: 500 mating cycles
Rated Current: 1.5 A
Working Voltage: 120 V AC
Operating Temperature: -40 °C to +85 °C
Insulator Material: PBT, UL94 V-0 rated, black color
No EMI Fingers: Reduces electromagnetic interference

Electrical and Mechanical Specifications of 61500814221 8P8C Jack

Property	Test Condition	Value	Unit
Rated Current	–	1.5	A
Working Voltage	–	120	V (AC)
Withstanding Voltage	1 min	1000	V (AC)
Withstanding Voltage Shielding to Pin	1 min	1500	V (AC)
Contact Resistance	–	20 max	mΩ
Insulation Resistance	–	500 min	MΩ
Durability	Mating cycles	500	cycles

61500814221 Datasheet

1. 615008138221 Datasheet - Dimensions

61500814221 THT Cat 3 Modular Jack Shielded 8P8C Without EMI Finger

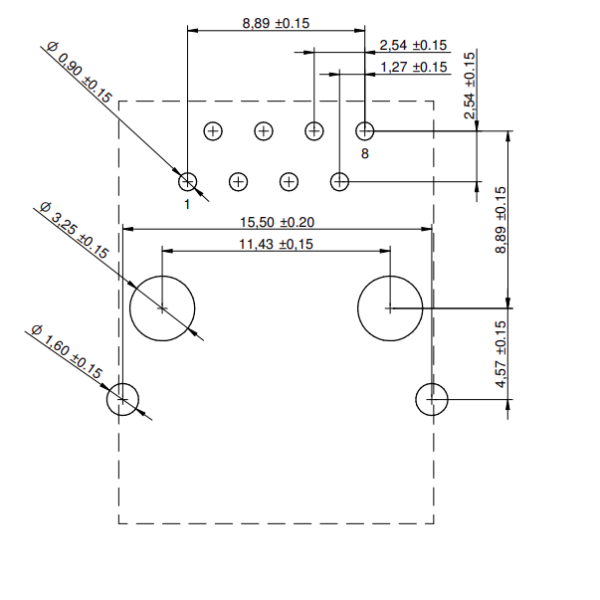

2. 615008138221 Datasheet - Recommended Hole Pattern

61500814221 THT Cat 3 Modular Jack Shielded 8P8C Without EMI Finger

61500814221 Shielded RJ45 Jack Material and Construction

Insulator: PBT, black, flame-resistant (UL94 V-0)
Contacts: Copper alloy with gold plating for low resistance and reliable connectivity
Shielding: Bronze with nickel plating for enhanced EMI protection

Why Choose 615008138221?

High Reliability: Designed for up to 500 mating cycles without degradation
Durable Materials: Flame-resistant insulator and corrosion-resistant contacts
Enhanced EMI Protection: Shielding ensures stable signal performance
Wide Temperature Range: Suitable for industrial and commercial installations
