TE 2-2301994-4 Industrial RJ45 MagJack Cat 5e Shielded Right-Angle

Product Categories

10G SFP+ Modules [11]
RJ45 Modular Jack [1578]
Magnetic RJ45 Jack [1729]
Low Profile RJ45 Jack [94]
PoE RJ45 Connector [322]
Vertical RJ45 Jack [339]
SMT RJ45 Connector [122]
RJ45 Multi Port Jack [1033]
Optical Transceivers [336]
PoE LAN Transformer [209]
Discrete Magnetic Transformers [1192]
SFP Cage Connector [454]
QSFP Cage [336]
Circular Connectors [12]
LINK-PP Magjacks [25]
LINK-PP Modjacks [8]
LINK-PP Magnetics [11]
LINK-PP Cages [5]
LINK-PP Transceivers [8]

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

TE 2-2301994-4 Industrial RJ45 MagJack Cat 5e Shielded Right-Angle

Name: TE 223019944 Industrial RJ45 MagJack Cat 5e Shielded RightAngle
Brand: LINK-PP
Price: 3.7 USD

Brand Name : LINK-PP

Model Number : 2-2301994-4

Certification : UL,RoHS,Reach,ISO

Place of Origin : Made In China

MOQ : 50/500/1000/60K

Price : $3.7-$18

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : in Stock Ship Today

Packaging Details : Tray

PN : 2-2301994-4

Series : 1×1 Integrated RJ45 Jack

Number of Panel Ground Tabs : 6

Number of PCB Ground Tabs : 2

Number of Positions : 8

Number of Loaded Positions : 8

PCB Mount Orientation : Right Angle

Data Rate : 1Gb/s

Operating Temperature Range : -40°C to +85°C

LED Indicators : Green / Yellow

Contact Now

TE 2-2301994-4 is a single-port, shielded RJ45 MagJack connector without LED, supporting Gigabit Ethernet (10/100/1000Base-T) with Auto-MDIX.

The right-angle, through-hole design makes it ideal for board-edge or compact PCB layouts, while the integrated magnetics and EMI-shielded metal shell ensure stable signal integrity and reliable performance in industrial environments.

With gold-plated contacts, a UL-rated LCP housing, and a wide operating temperature range (-40 °C to +85 °C), this connector is an excellent choice for industrial switches, routers, embedded systems, and other Ethernet-enabled devices requiring long-term reliability and EMI robustness.

Key Specifications of Single Port RJ45 Connector 2-2301994-4:

1. General & Interface Information

Feature	Specification
Modular Jack & Plug Interface Type	RJ45 with Integrated Magnetics
Modular Jacks & Plugs Products	RJ Type Jacks & Plugs
Modular Connector Style	Jack
Connector & Contact Terminates To	Printed Circuit Board
Data Rate	1 Gb/s
Performance Category	Cat 5e
Shielded	Yes
Indicator Type	LED
UL Flammability Rating	UL 94V-0

2. Configuration & PCB Mounting

Feature	Specification
Port Configuration	Single Port
Port Matrix Configuration	1 x 1
Connector Contact Density	Standard
Number of Positions	8
Number of Loaded Positions	8
PCB Mount Orientation	Right Angle
Termination Method to PCB	Through Hole - Solder
PCB Mount Retention Type	Boardlock
Modular Jack Latch Orientation	Standard - Latch Down
Mating Entry Location	Side
Connector Profile	Standard

3. Grounding & Shielding

Feature	Specification
Grounding Options	PCB and Panel Ground
Shield Panel Ground Type	Shield has bottom panel grounds.
Number of Panel Ground Tabs	6
Panel Ground Location	Top and Side
Number of PCB Ground Tabs	2
PCB Ground Tab Location	3.05 mm [0.12 in]
Shield Material	Brass
Shield Plating Material	Nickel
Shield Plating Finish	Matte

4. LED and Housing Details

Feature	Specification
LED Color (Top Left)	None
LED Color (Top Right)	None
LED Color (Bottom Left)	Green/Yellow
LED Color (Bottom Right)	Green/Yellow
Housing Material	Liquid Crystal Polymer (LCP)
Housing Color	Black
Insulator Material	LCP
PCB Retention Feature Material	LCP
Connector Height	13.63 mm [0.537 in]

5. Contact & Plating Details

Feature	Specification
Contact Base Material	Copper Alloy
Contact Underplating Material	Nickel
Contact Mating Area Plating Material	Gold (Au)
Contact Mating Area Plating Material Thickness	0.76 μm [30 μin]
PCB Contact Termination Area Plating Material	Tin
PCB Contact Termination Area Plating Material Finish	Matte

6. Usage, Conditions & Packaging

Feature	Specification
Operating Temperature Range	-40 – 85 °C [-40 – 185 °F]
Packaging Method	Reel
Packaging Quantity	80

TE 2-2301994-4 RJ45 Magjack Datasheet:

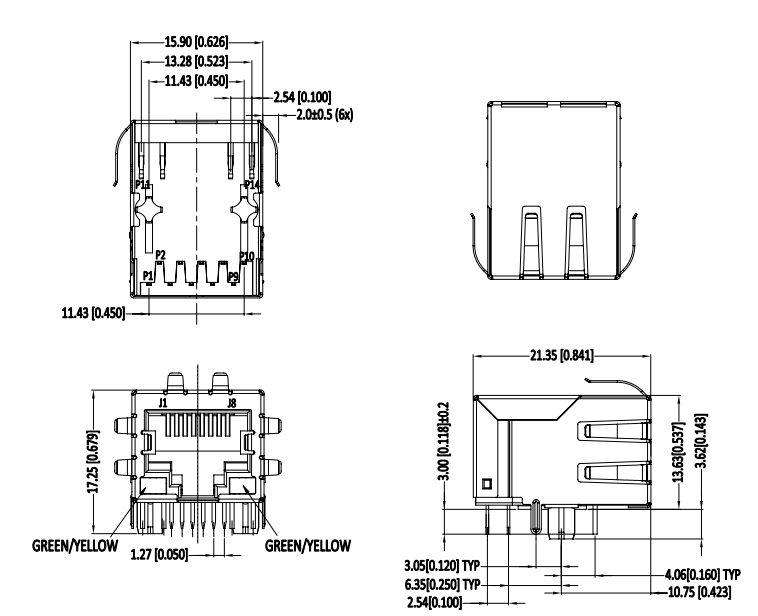

2-2301994-4 Datasheet-Mechanic:

TE 2-2301994-4 Industrial RJ45 MagJack Cat 5e Shielded Right-Angle

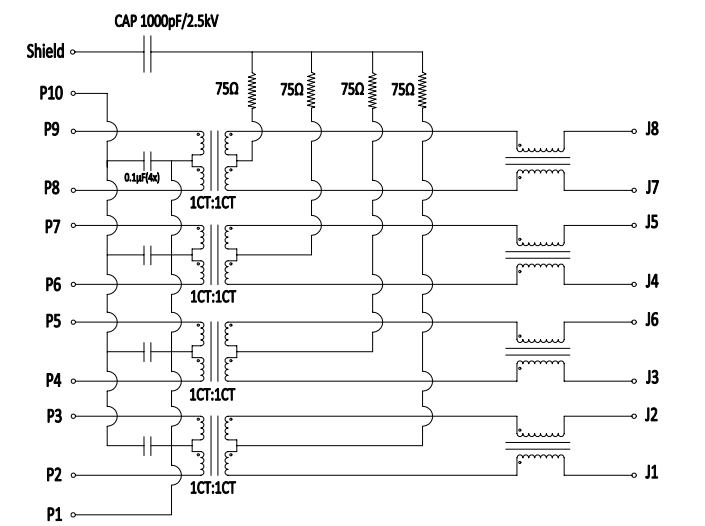

2-2301994-4 Datasheet - Circuit Circuit

TE 2-2301994-4 Industrial RJ45 MagJack Cat 5e Shielded Right-Angle

2-2301994-4 Datasheet - PCB Layout:

TE 2-2301994-4 Industrial RJ45 MagJack Cat 5e Shielded Right-Angle
